Roof extension in Haarlem with dormers and new structural floor

In Haarlem, we built a roof extension with a 0.4 m increase in the 1st floor height and a new load-bearing floor for the 2nd floor. The intervention adds a full-fledged extra floor, with plenty of daylight via dormers and HR++ skylights, improved insulation and a sophisticated layout for a future bathroom.

Location:
Harlem
Duration:
9 weeks
Cost:
€116.204

Design, engineering & preparation

We started with the architectural and structural plan, including scaffolding and a phased method for demolition, structural work and dismantling. Rubbish and demolition material have been continuously removed for a safe, clean construction site.

1st floor — elevation and support structure

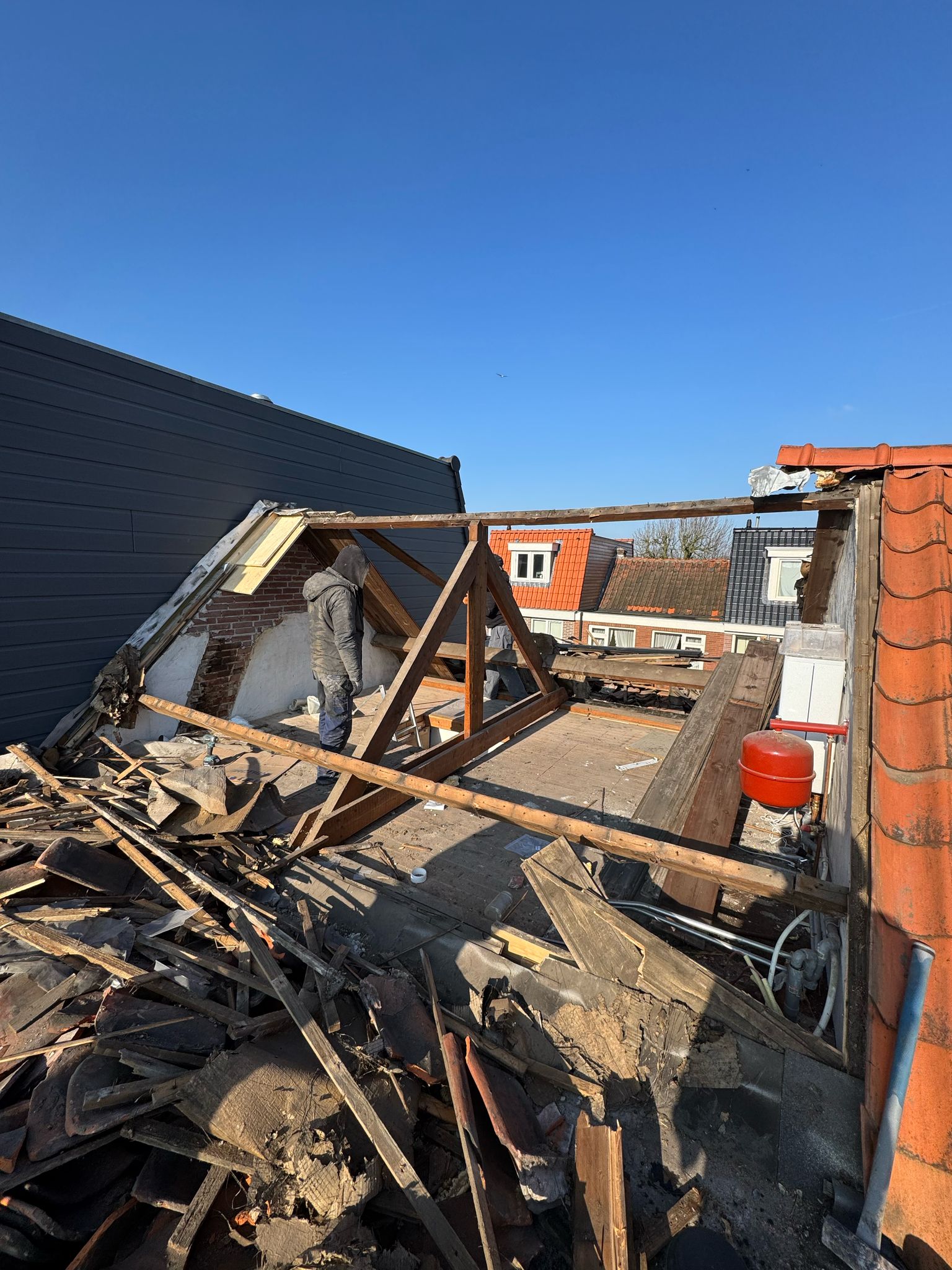

  • 1st floor ceiling demolished.
  • Wall increase +0.4 m: interior walls (6 m²) and outer walls (12 m²) raised for the new roofline.
  • Extra façade masonry (north): 0.4 m high strip (2 m²) adjacent to the existing façade.
  • Reinforced timber frame: additional wooden styles/beams installed to support the roof structure; parts of walls opened locally and repaired after installation.
  • Layout change: wall partially removed and bathroom door moved to make room for the new staircase.
  • New beam layers/frames according to the revised floor plan, including enclosures for stiffeners in the neighbor wall (without repair in case of breakthrough).
  • Steel lintels installed above window frames.
  • Façade insulation (inside, north): 11 m² insulated for a better thermal shell.

2nd floor structural work — floor, roof and outer shell

  • New wooden support and subfloor (35 m²) as the basis for the new floor.

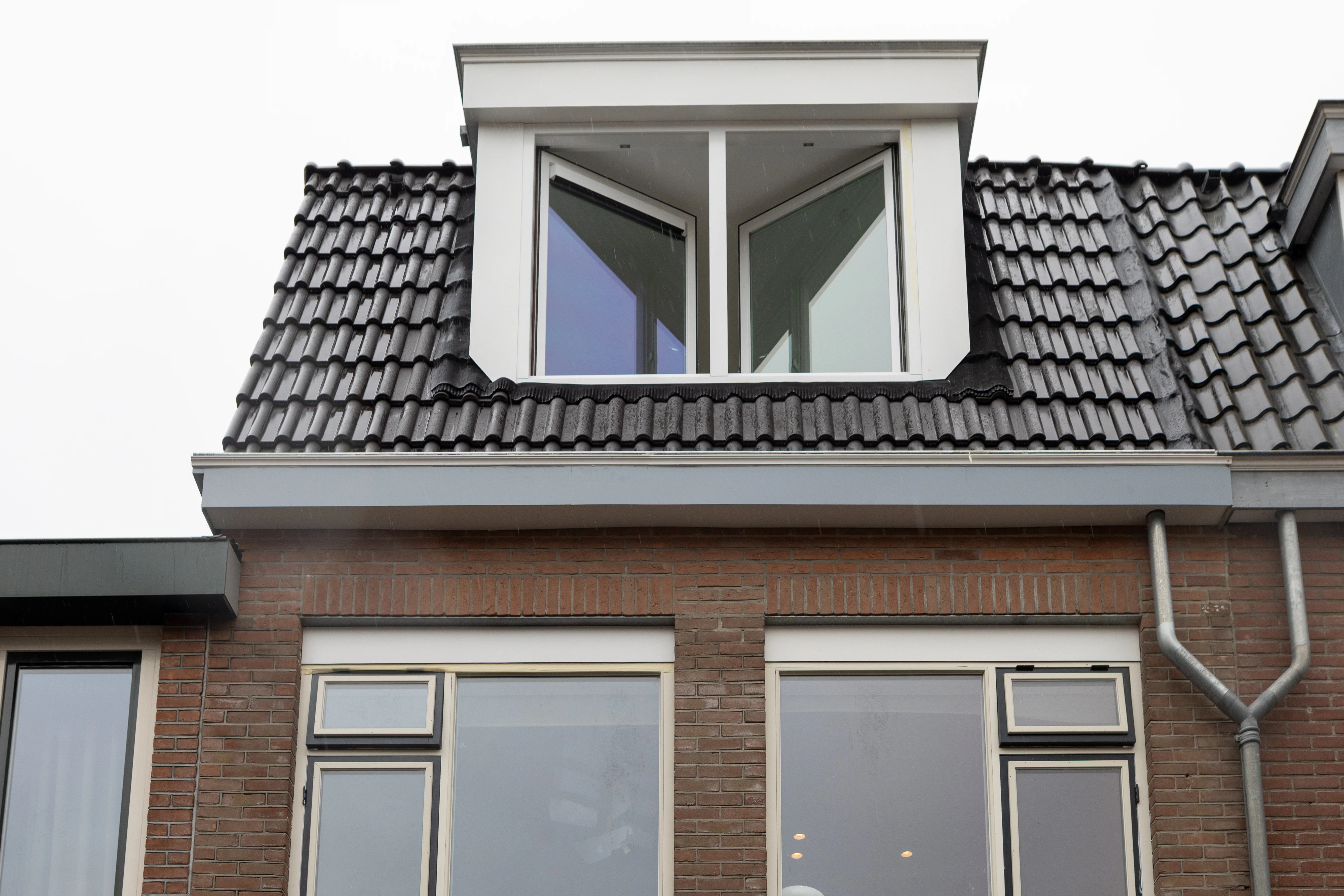

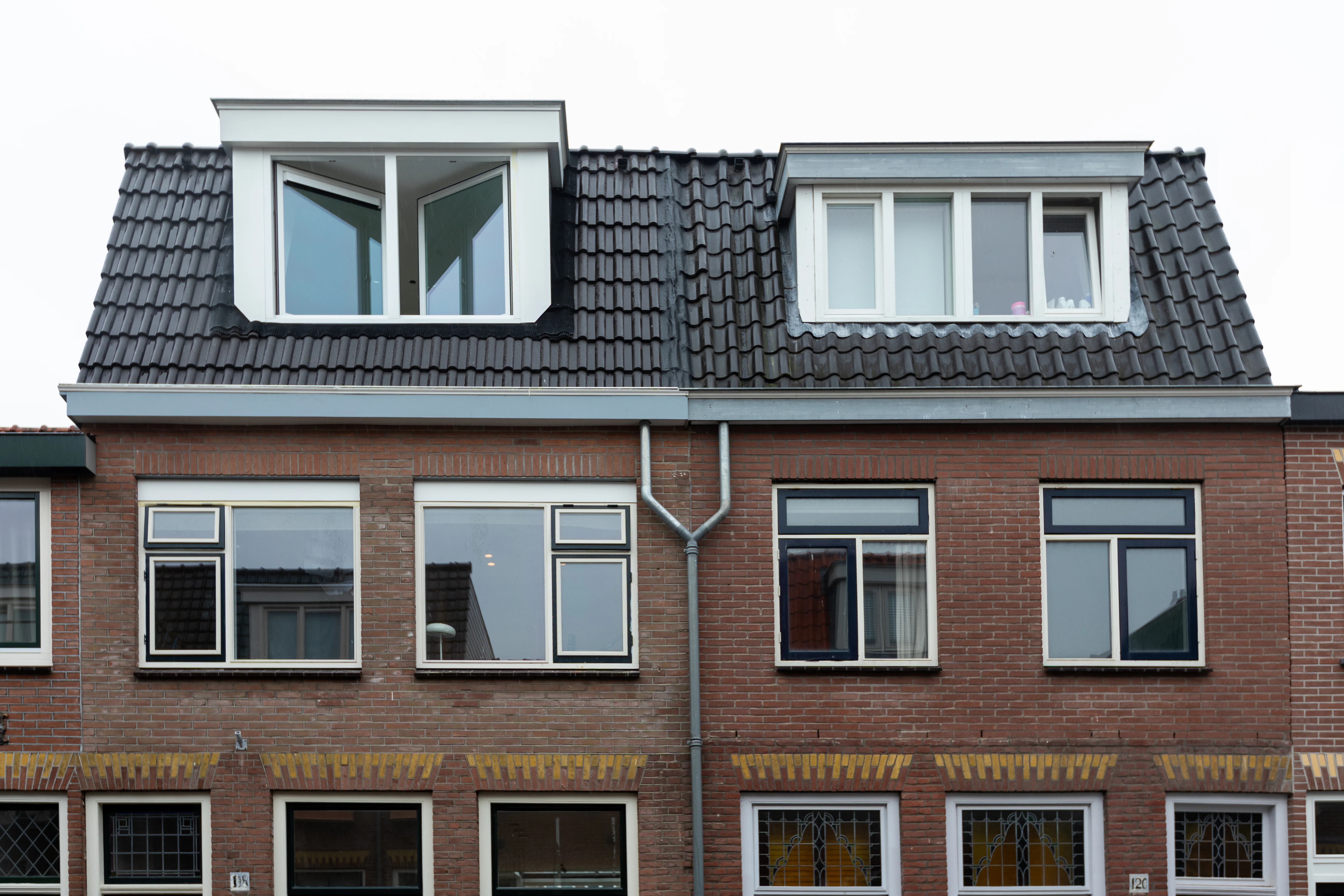

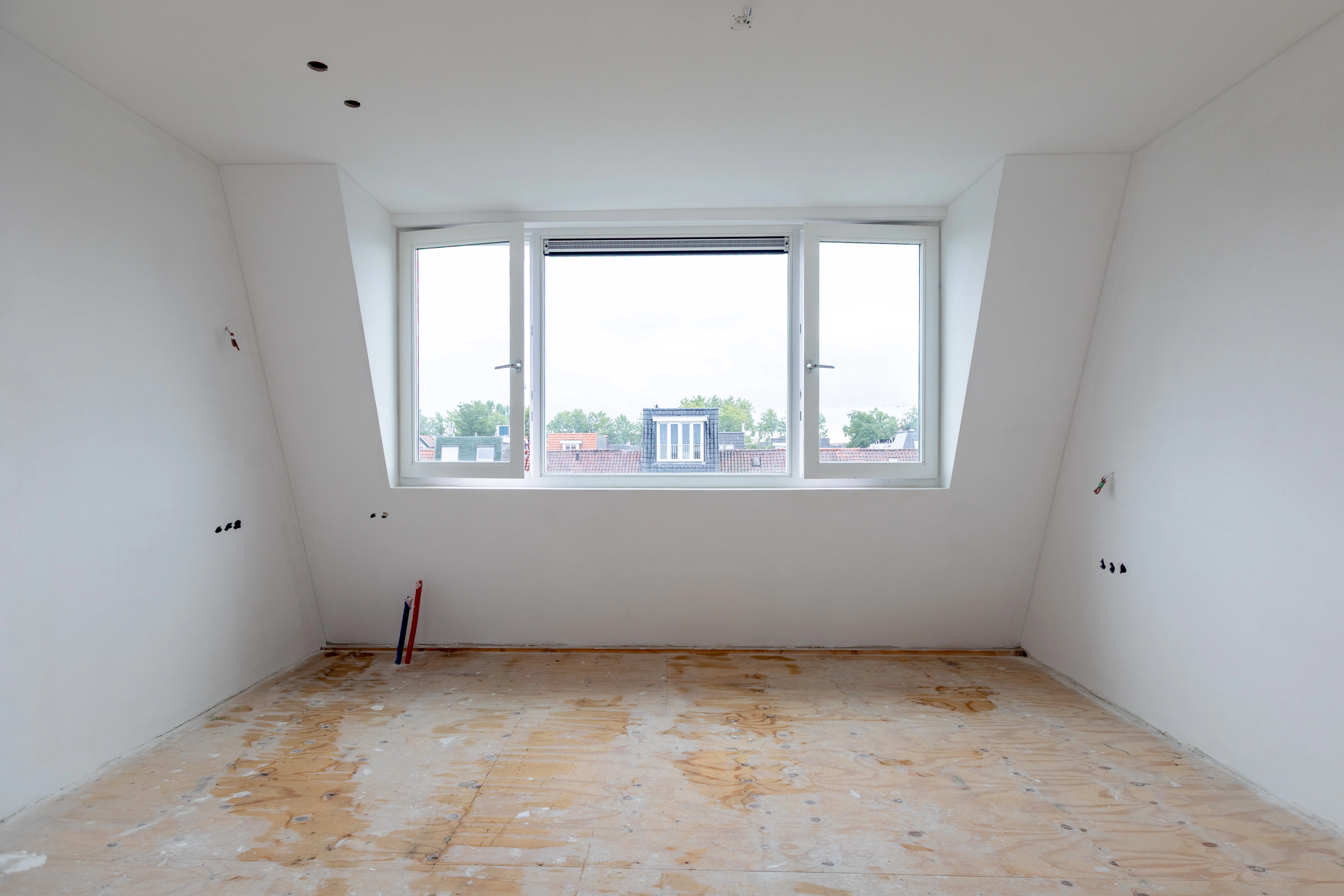

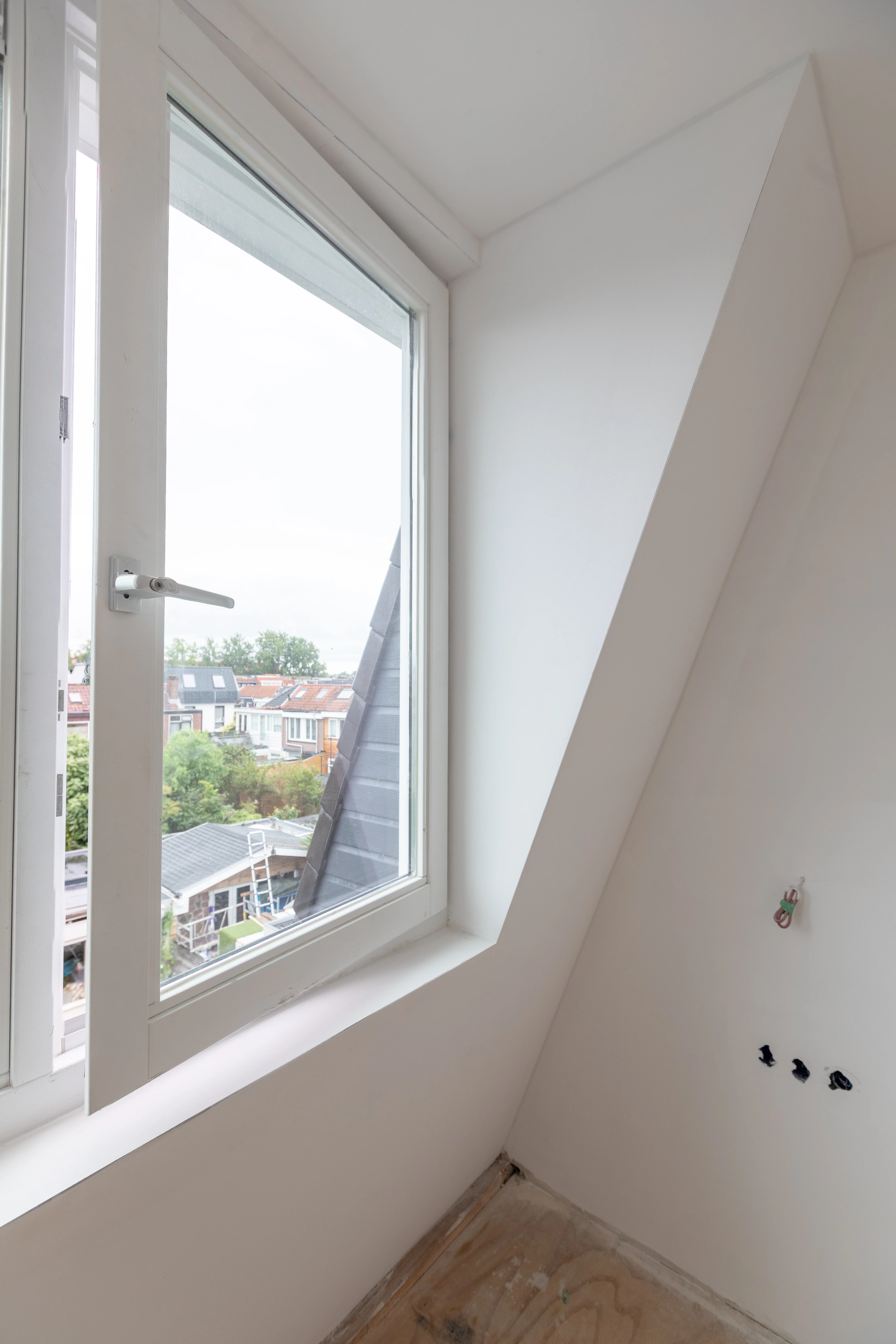

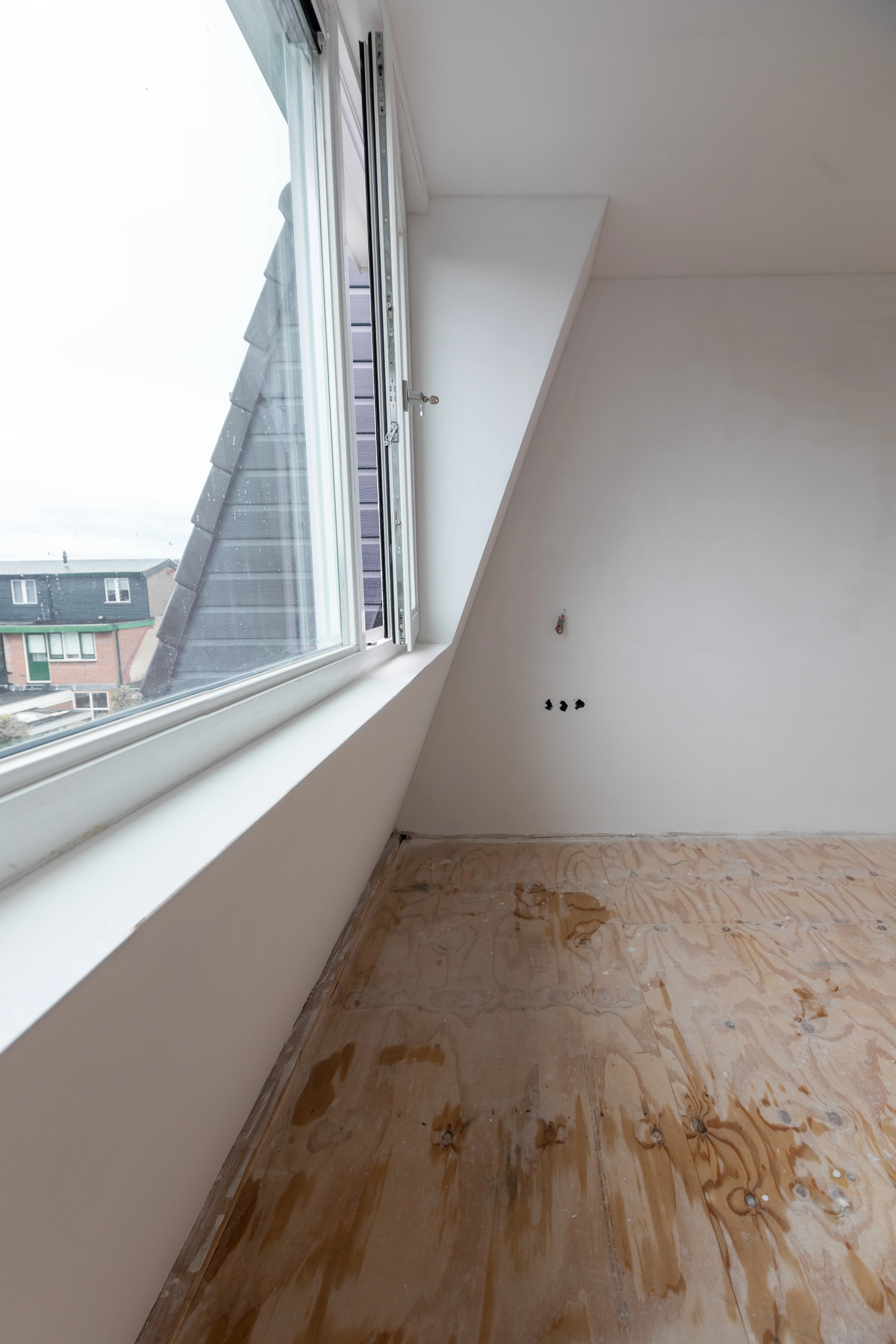

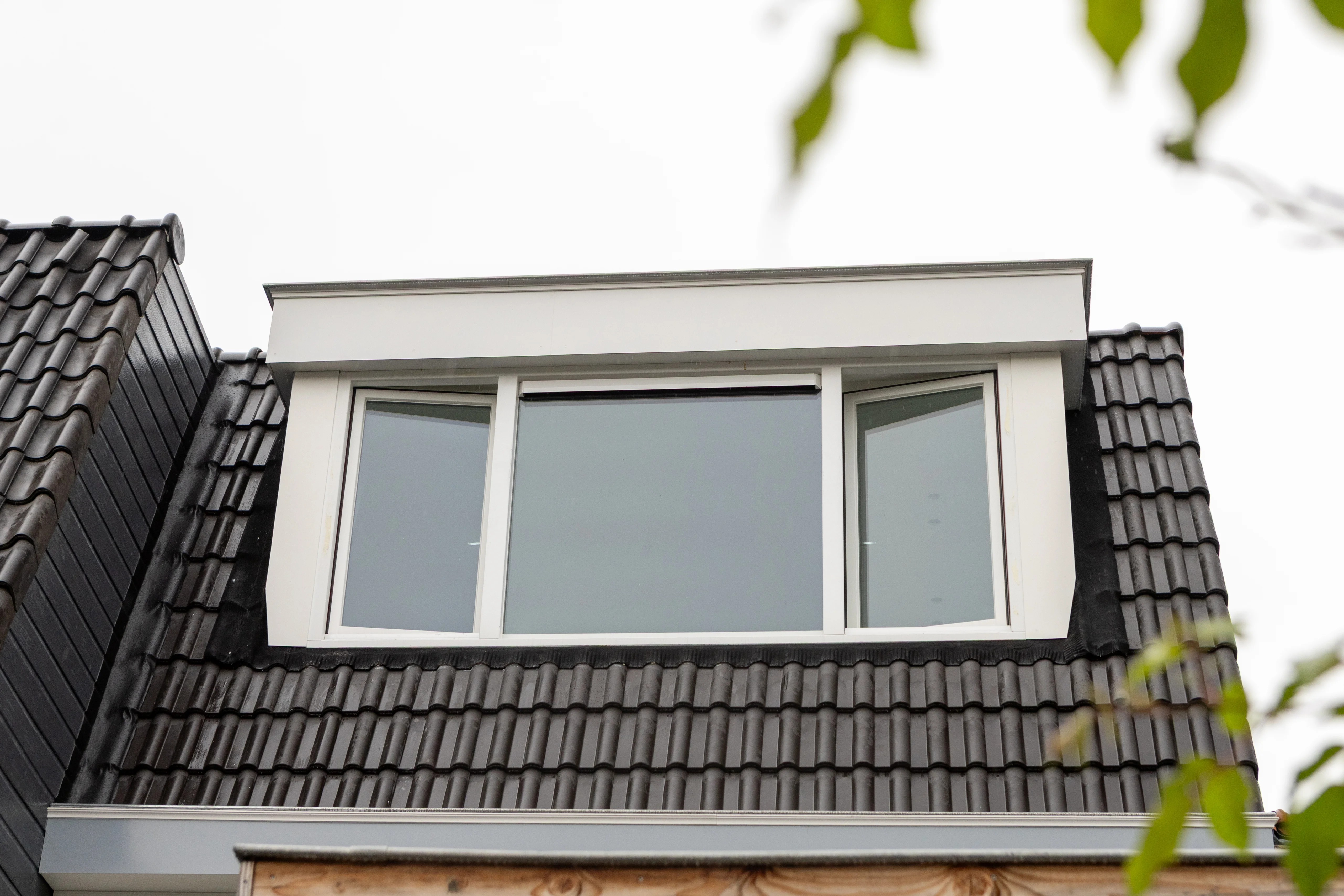

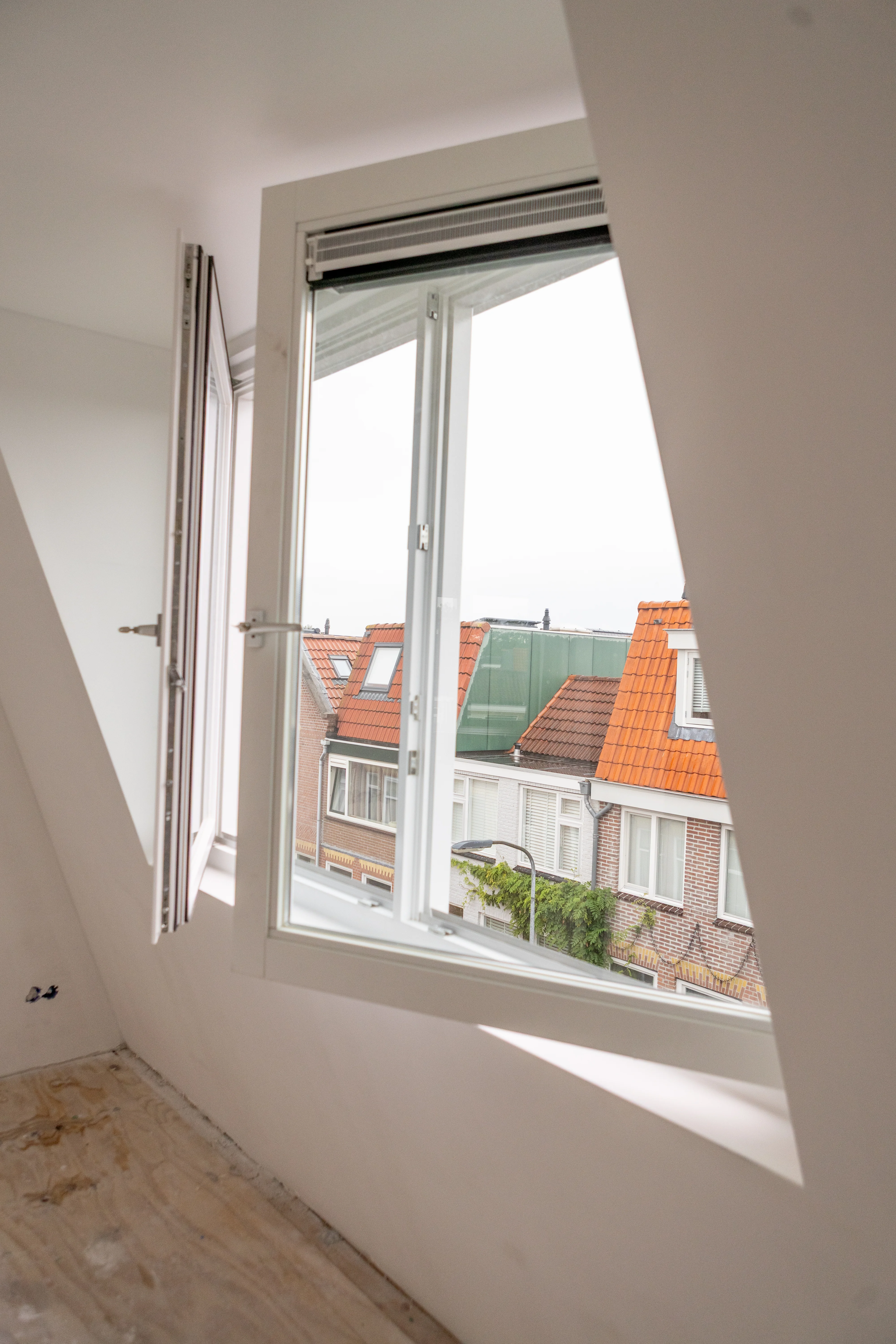

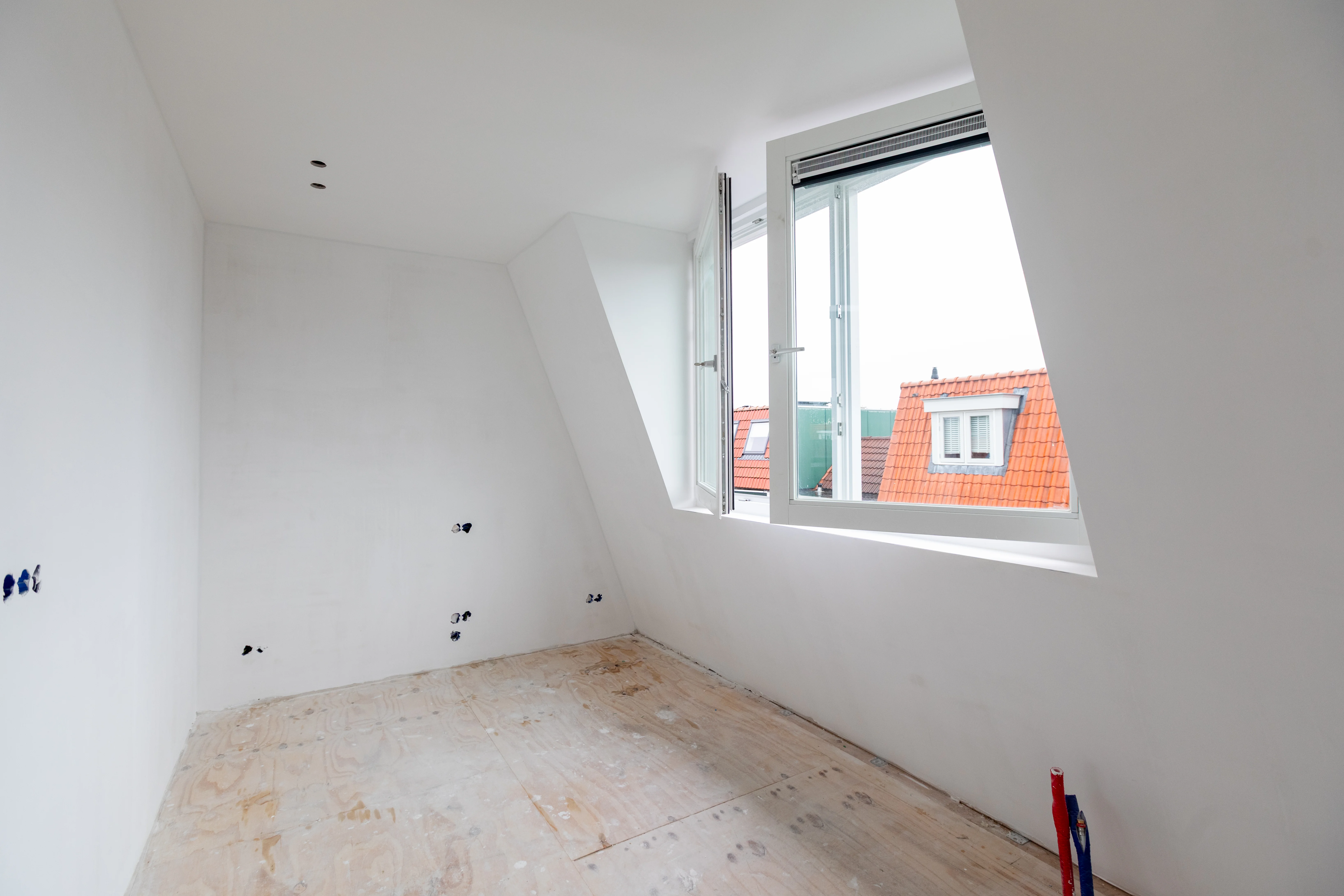

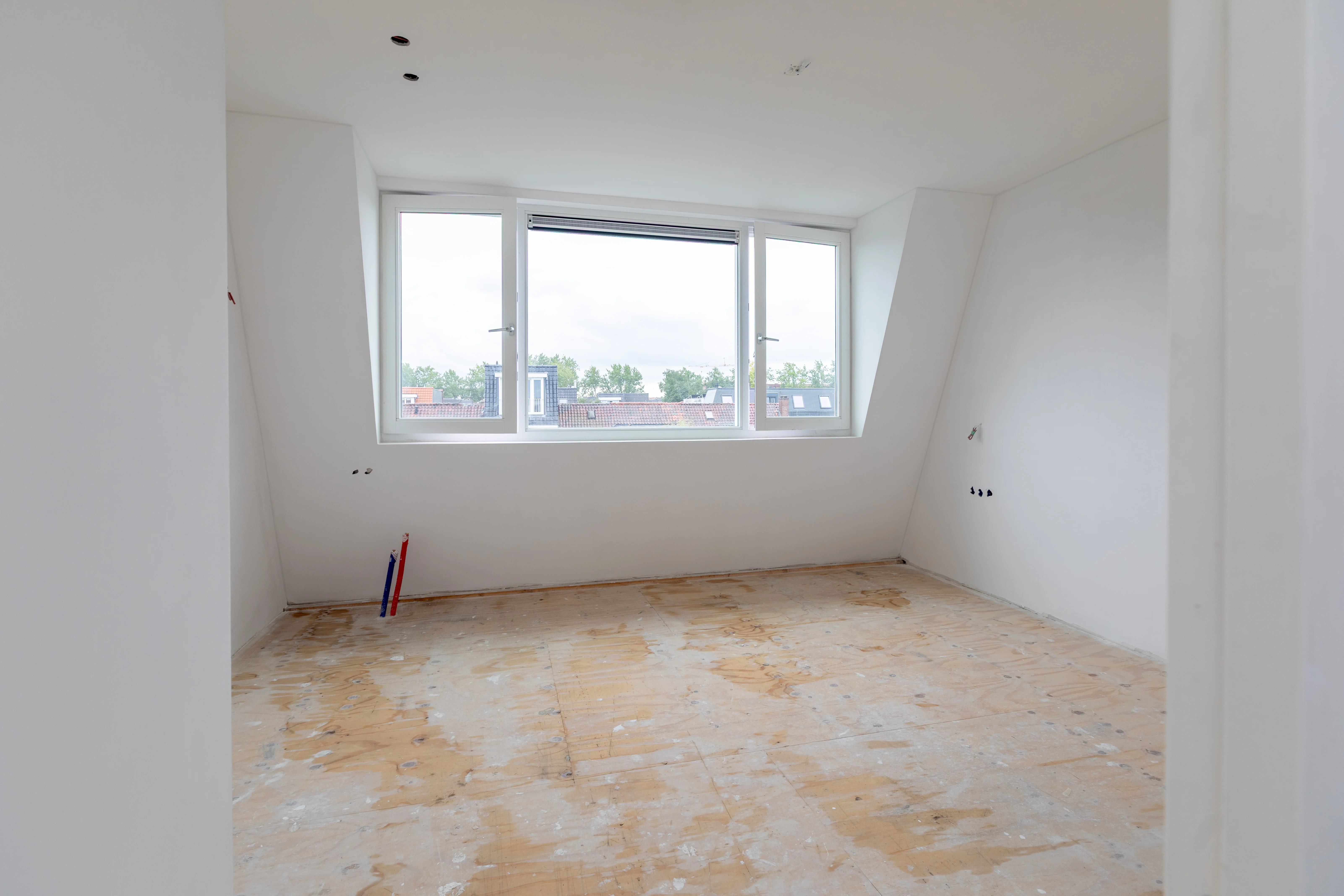

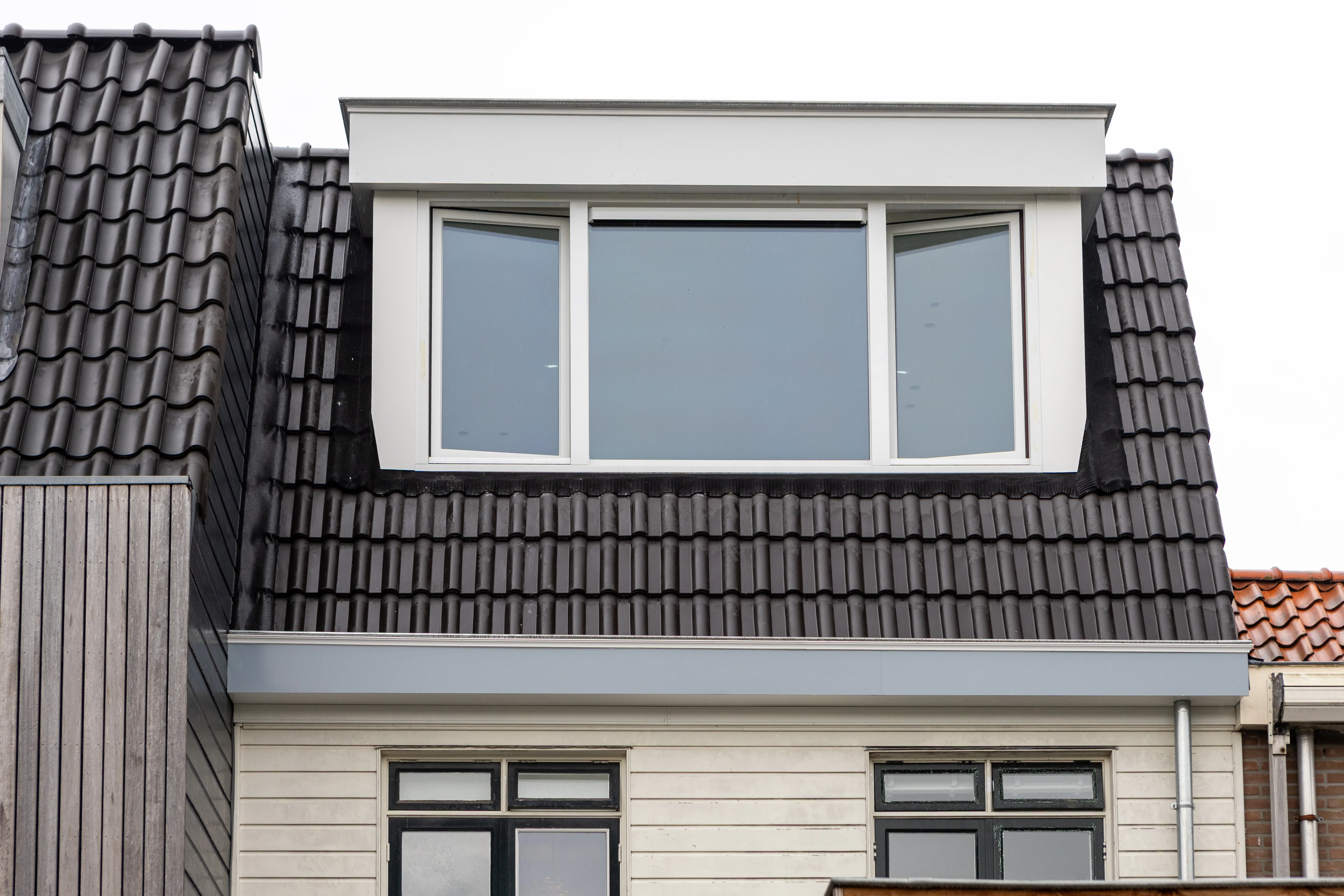

  • Sloped roof with dormers (28 m²) finished with roof tiles and gutters on the north and south sides.
  • Flat roof (32 m²) installed and insulated as a hot roof structure.

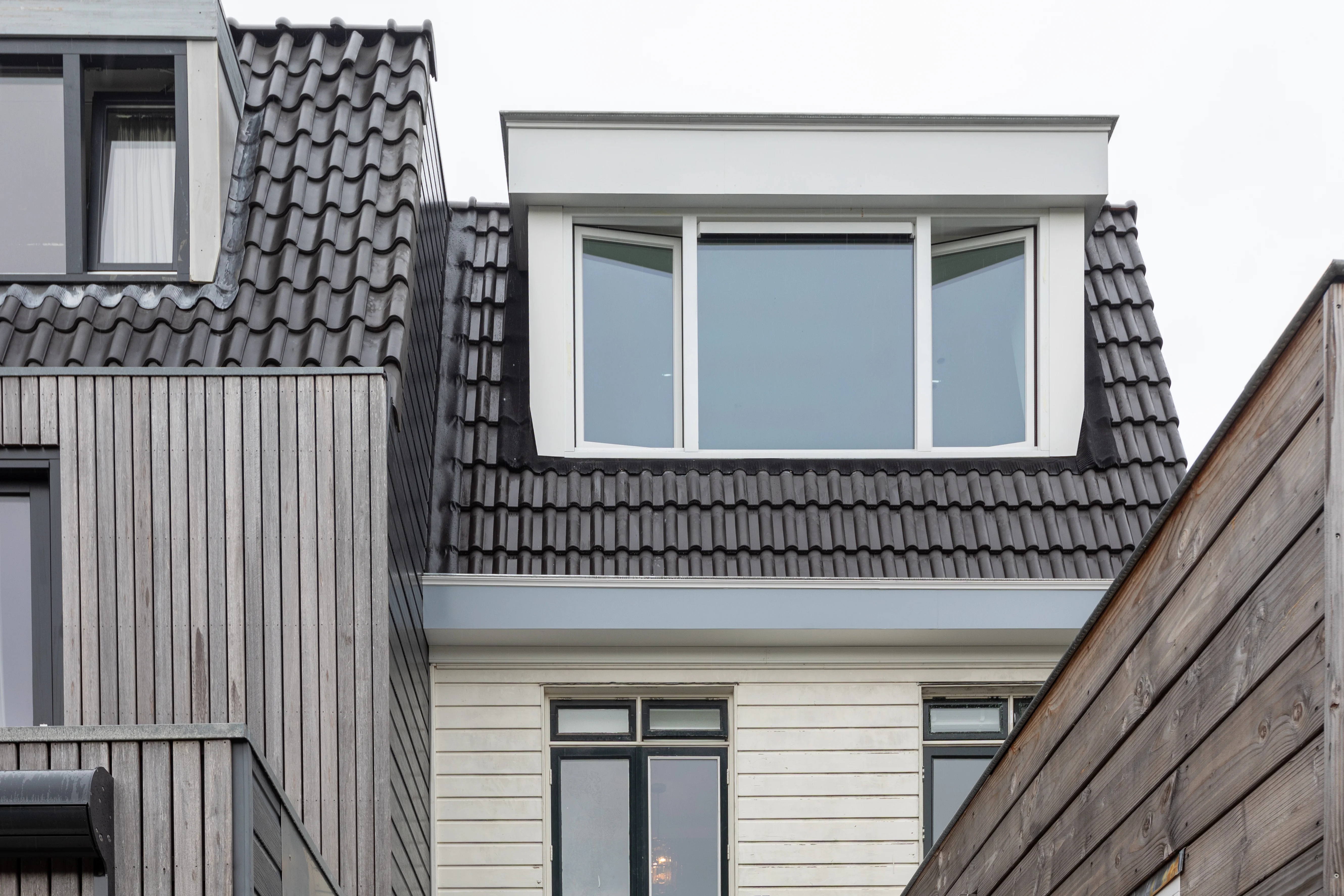

  • Exterior walls (76 m²) installed; Keralit cladding applied to one end façade and to the dormers (24 m²).

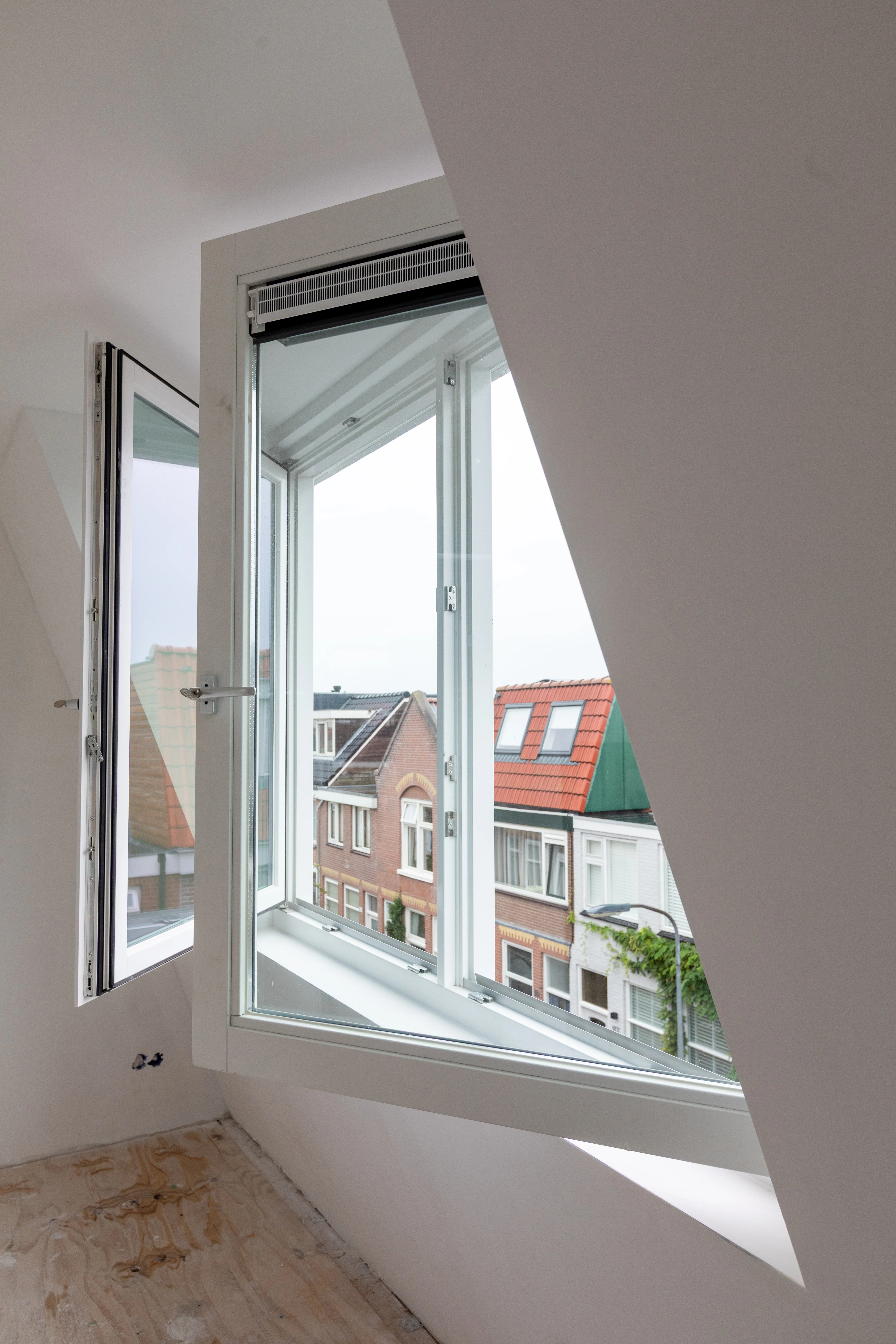

  • Three new wooden frames installed and finished/painted.

Daylight & ventilation

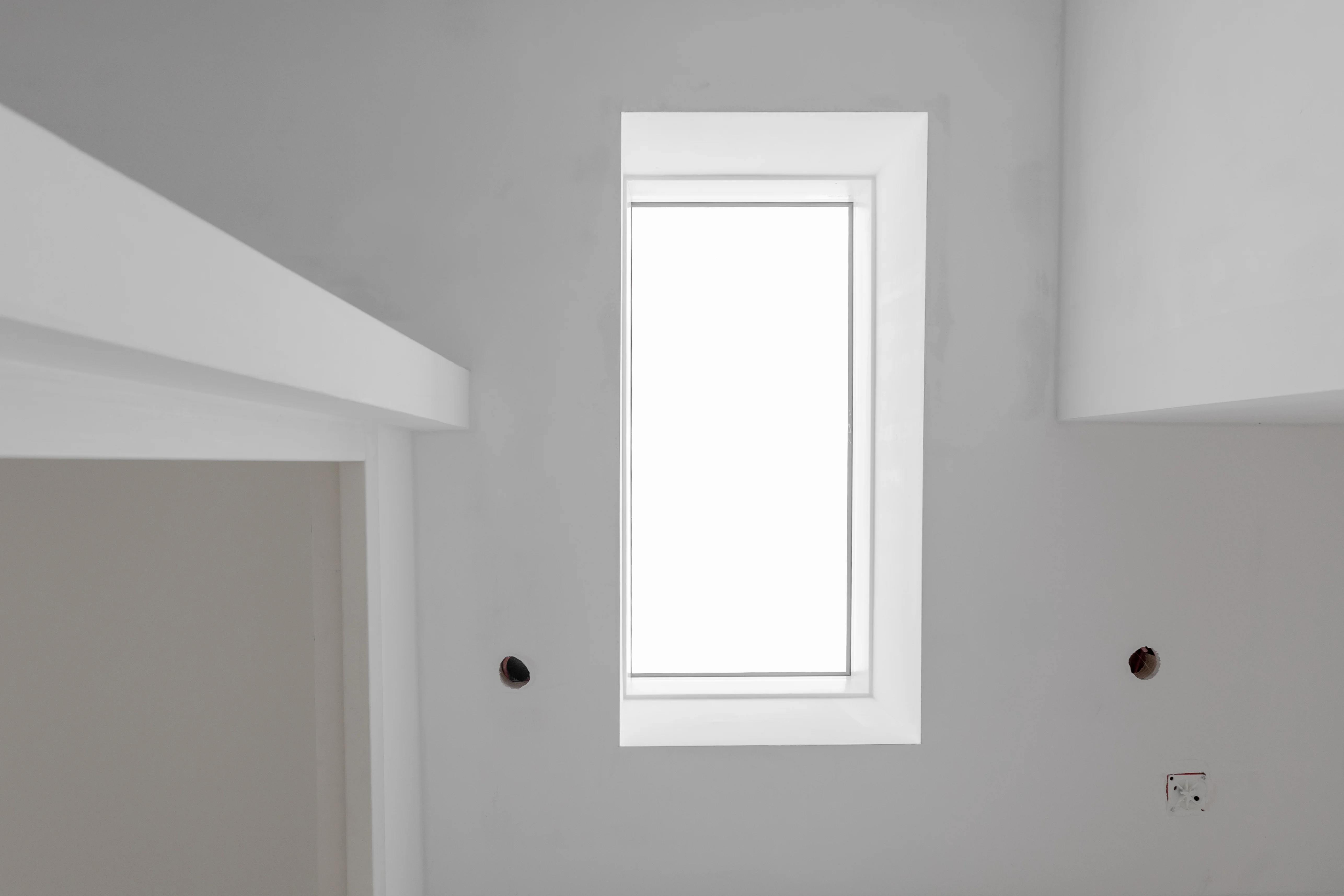

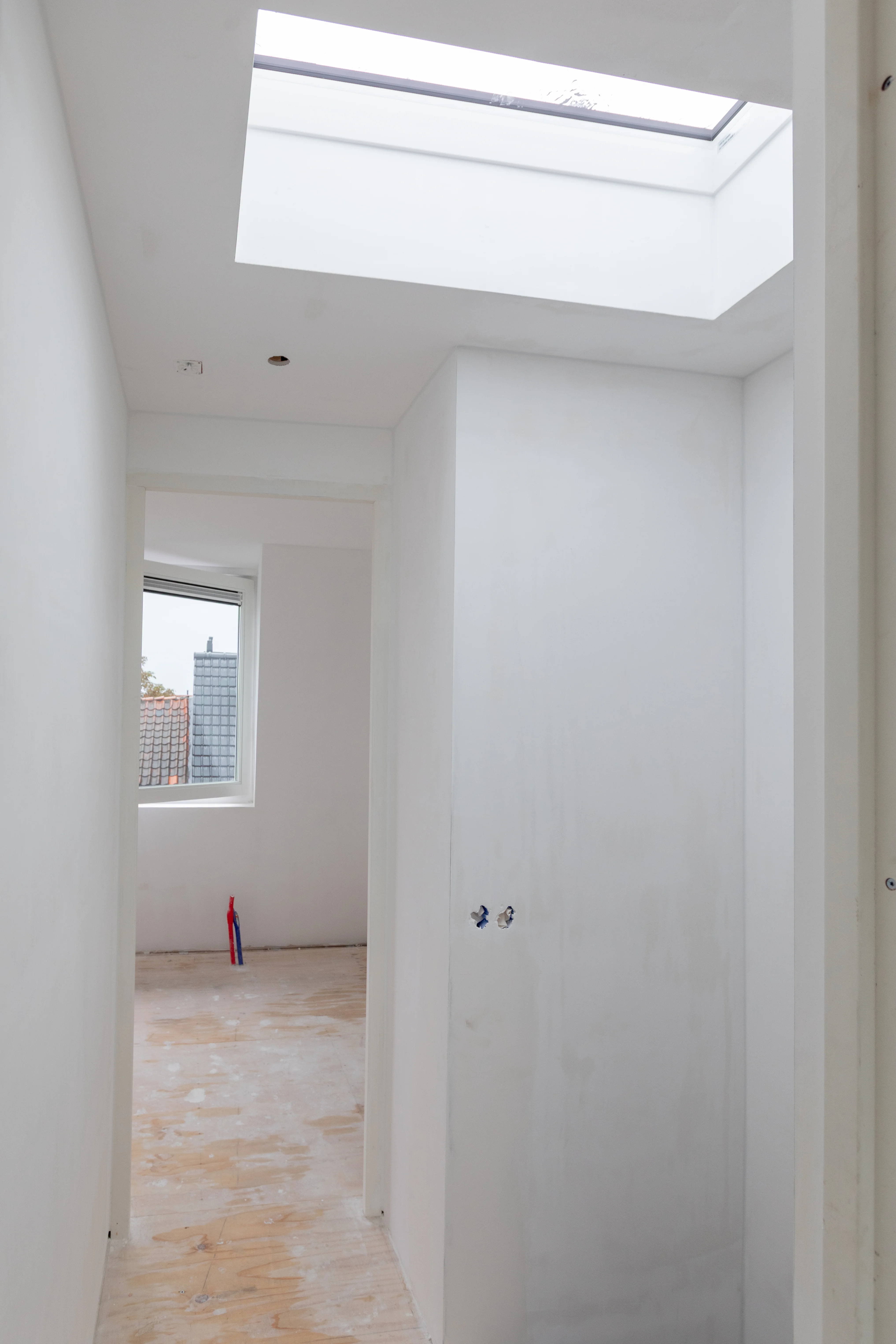

  • Two HR++ skylights installed;
  • Two electric skylights installed;
  • Active ventilation unit prepared and installed in the (future) bathroom area.

Installations — electricity, heating and sanitation

  • Electricity: new pipes with 9 sockets, 4 switches and 4 light points.
  • Heating: 4 radiators installed with neat pipes.
  • Sanitary (roof/bathroom): new supply and exhaust pipes prepared; the open sewer connection in the attic has been checked and capped.

Interior walls & ceilings — acoustics and finishing

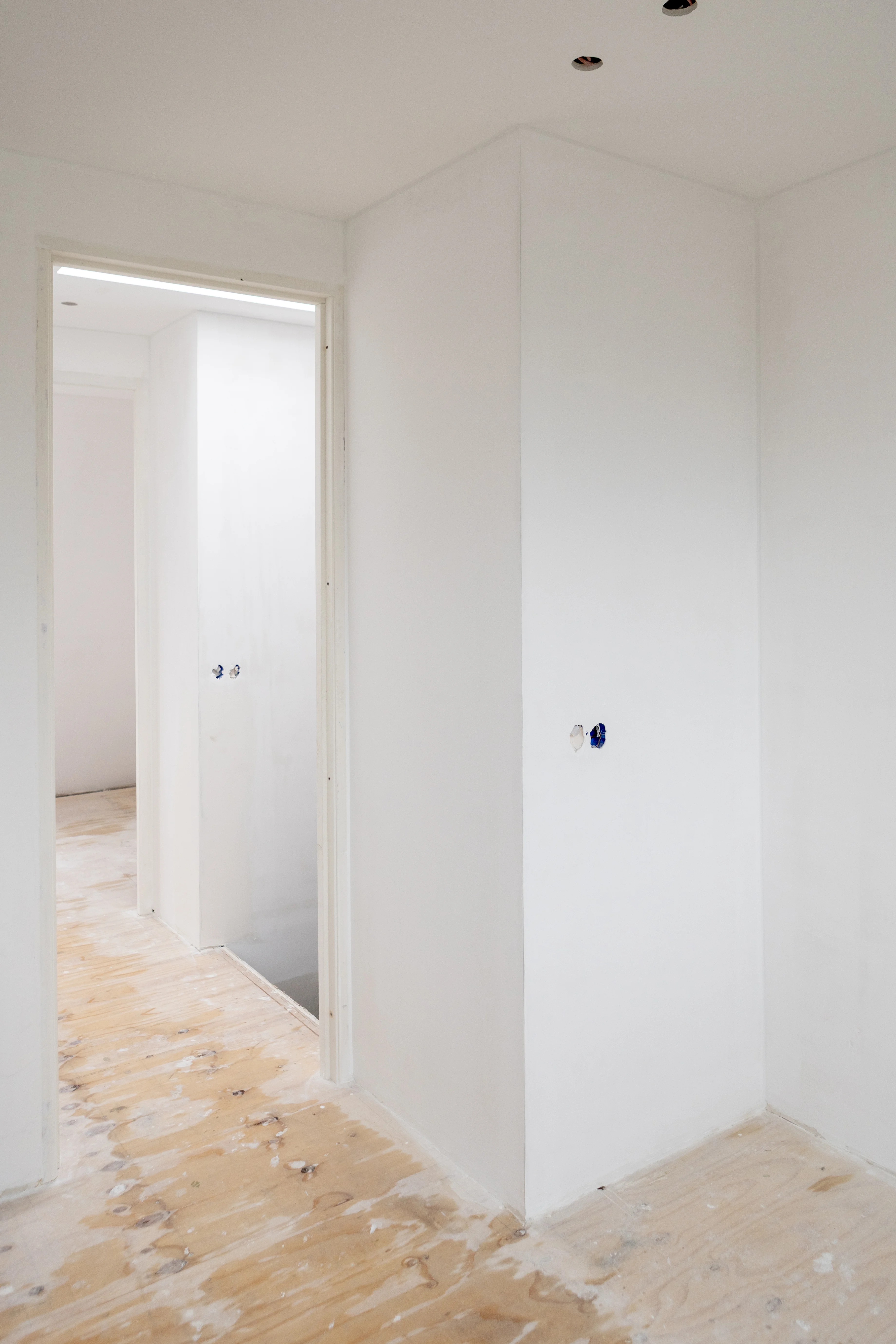

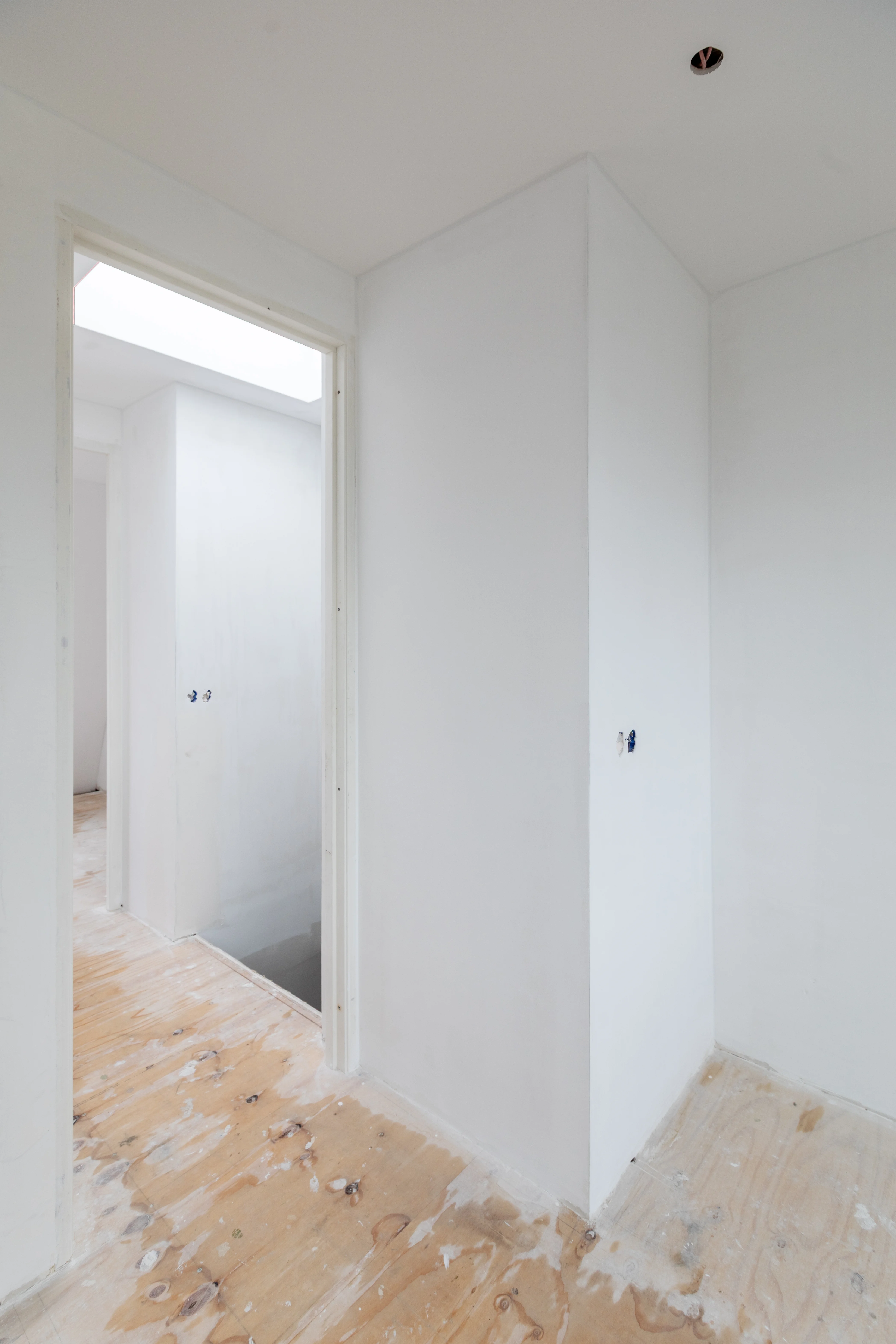

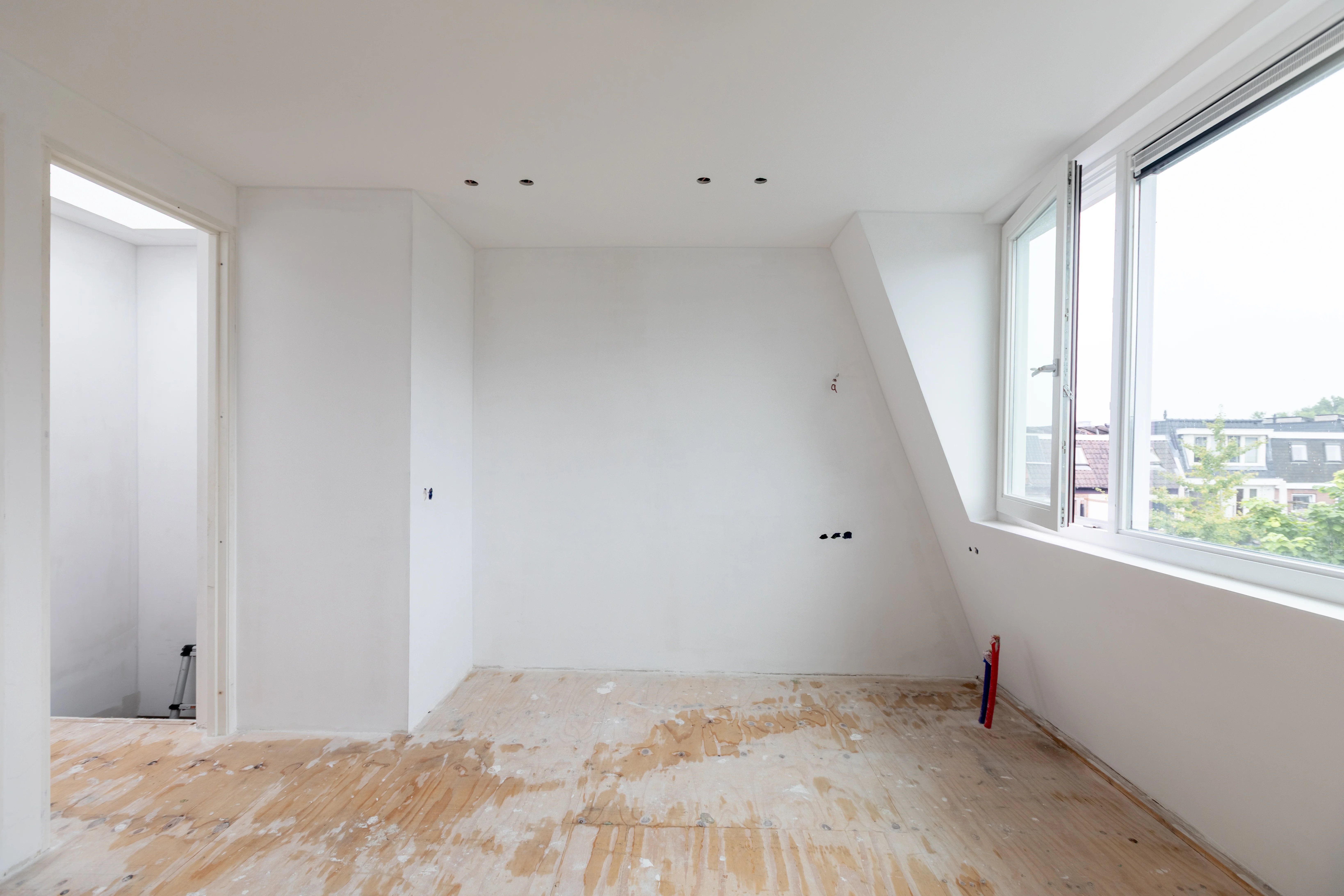

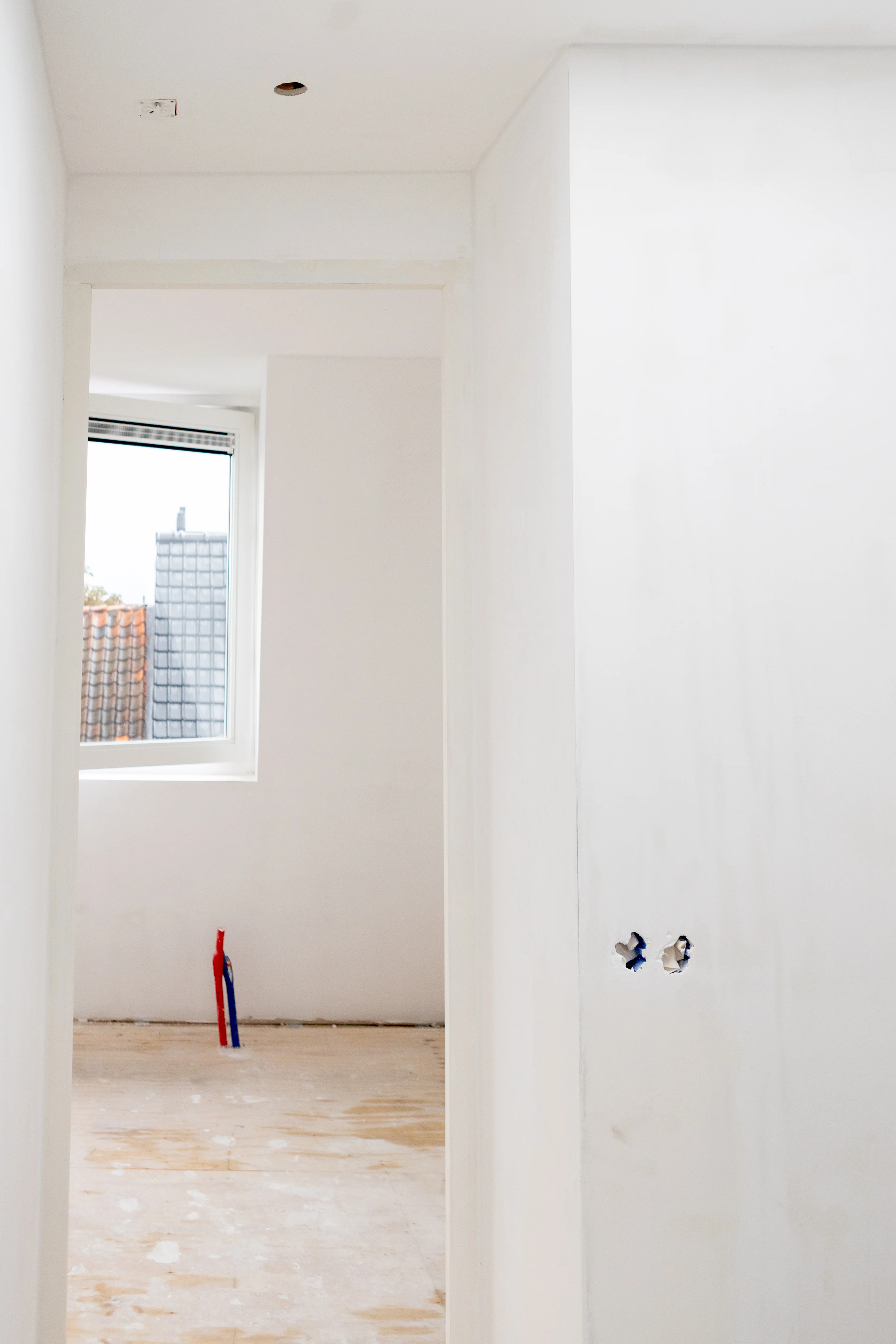

  • Interior walls: 41 m² of new partitions with sound-insulating padding, logically positioned for rooms and wet areas.
  • 2nd floor ceiling: plaster ceiling (32 m²) installed.
  • Plaster walls: 1st floor +0.3—0.4 m elevation strips (15 m²) and 2nd floor (82 m²) tightly finished.
  • 1st and 2nd floor ceilings: a total of 80 m² plastered and prepared for finishing.

Outcome

A future-proof roof extension that offers extra living space, more daylight and a much improved thermal shell. The combination of raised 1st floor, new load-bearing floor, dormers and HR++ skylights, and soundproof interior walls provides a quiet, light and comfortable 2nd floor - ready for further furnishing, including a fully-fledged bathroom.

After the renovation

No items found.

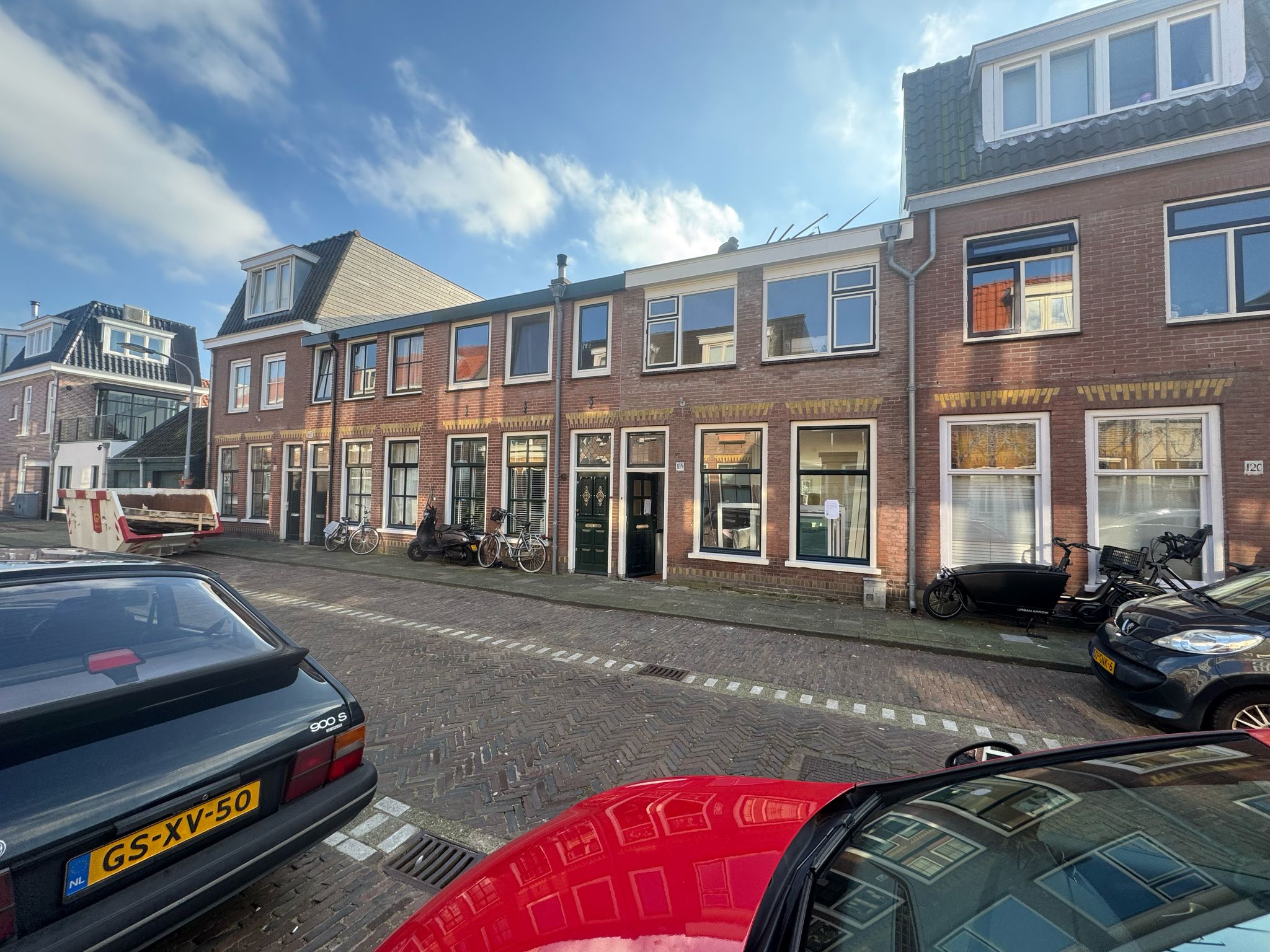

Before the renovation
