At Bricknest, we specialize in innovative and energy-efficient home heating systems. A floor heating with a bubble plate is a modern and sustainable solution that ensures optimal home comfort and lower energy costs. Learn why this system is so popular with homeowners who opt for efficiency and quality.
What is studded plate?

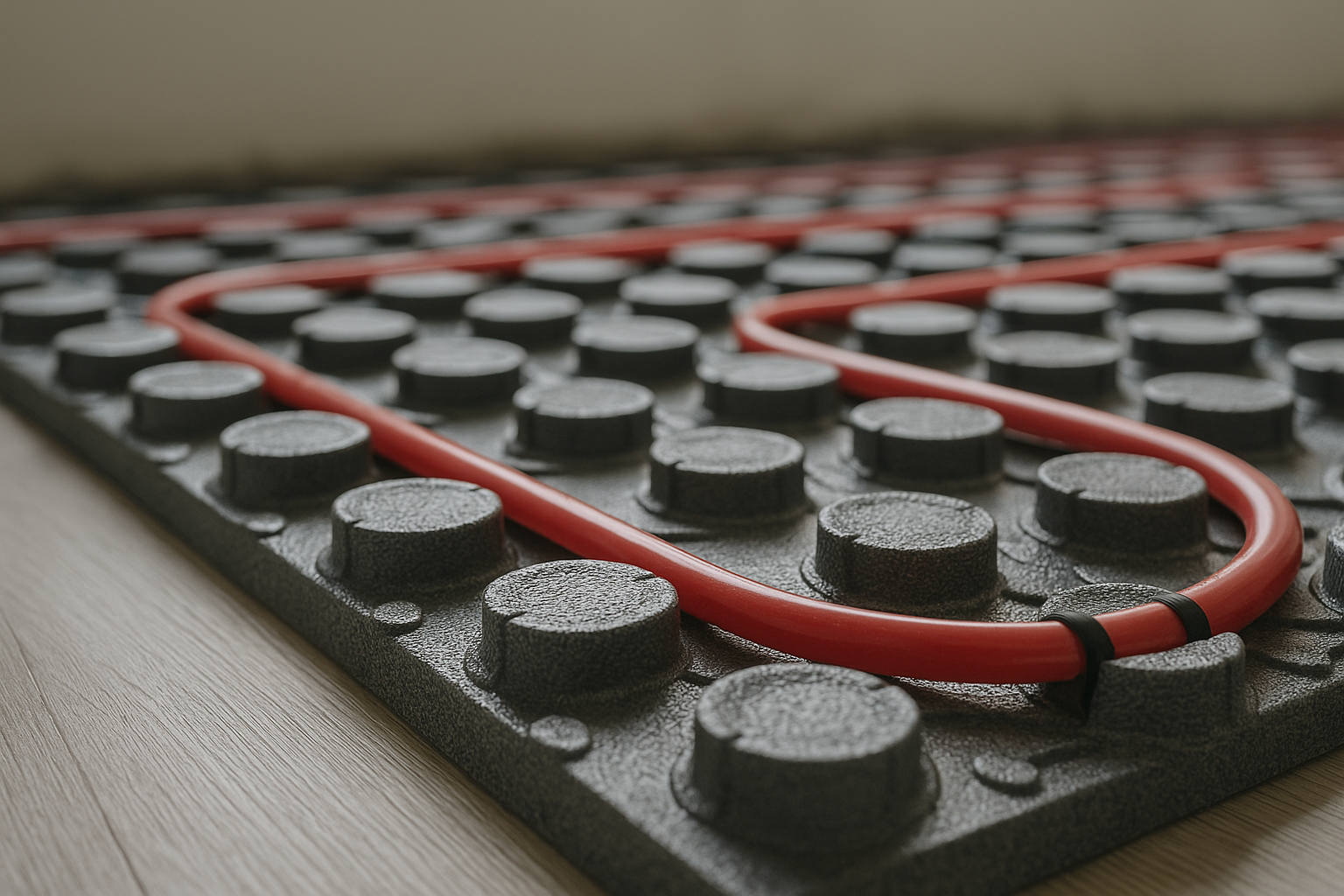

A bubble board is a special insulation panel that is used in water-based floor heating systems. It forms the basis for uniform and stable heat distribution in the floor.
Construction
The panels are generally made of expanded (EPS) or extruded polystyrene (XPS) — both known for their excellent insulating properties. The most striking feature is the small studs or raised recesses on the surface, into which the heating pipes can easily be clicked.
Thanks to the locking edges, the panels fit together seamlessly, which ensures a well-insulated and stable surface. Some models also include an aluminium top layer that distributes heat even more evenly.
Benefits
A bubble board floor not only provides a practical basis for floor heating, but also significantly improves the comfort and energy efficiency in the home. The most important advantages at a glance:
- Quick installation: the tubes click directly into the studs, without additional mounting material.
- Sturdy attachment: pipes remain firmly in place while installing the screed.
- Even heat distribution: the floor heats up equally quickly everywhere — without cold zones.
- Optimal insulation: minimizes heat loss downwards and maximizes efficiency.
- Widely applicable: suitable for various types of heating pipes and floor structures.
- Cost-effective: less installation time, higher efficiency and lower long-term energy costs.
How does bubble board insulation work?
The main goal of a bubble board insulation system is to minimize heat loss downwards — towards the foundation or subsoil — and to make optimal use of the heat in the living space above.
Limiting heat loss
The insulation material (EPS or XPS) has a very low thermal conductivity coefficient. As a result, it forms an effective barrier that prevents heat from the heating pipes to the cold surface. This is particularly important for floors above an unheated basement or directly on the ground floor.
Without good insulation, a significant part of the heat produced is lost, resulting in higher energy costs.
Increasing efficiency
By conducting heat upward, the bubble plate ensures faster heating of the room and a more stable temperature with less energy consumption. As a result, the system requires less of the boiler or heat pump and is not only more efficient, but also more environmentally friendly and sustainable in daily use.
Installation costs
The cost of floor heating with bubble board insulation depends on several factors to consider when planning your budget.
Materials
When determining the costs of floor heating with bubble board insulation, the choice of materials plays a major role. Each component contributes to the system's performance, durability and overall price. Below is an overview of the most important components:
- Bubble plates: the price varies depending on the thickness, type (EPS or XPS), the presence of an aluminum top layer and the manufacturer. Thicker plates and models with foil are usually more expensive, but offer higher insulation values and better thermal conductivity.
- Heating pipes: costs vary by type (PEX, PERT, etc.), diameter and total length required for the system.
- Distributor: The price depends on the number of heating groups and any additional functions such as flow meters or thermostatic controllers.
- Other materials: couplings, fasteners, edge insulation and damping tape complete the system and ensure stable and efficient operation.
Outturn
For an accurate customized quote, we recommend contacting Bricknest's specialists. We take care of the entire process, including:
- Preparation of the subfloor: leveling, cleaning and possibly waterproofing.

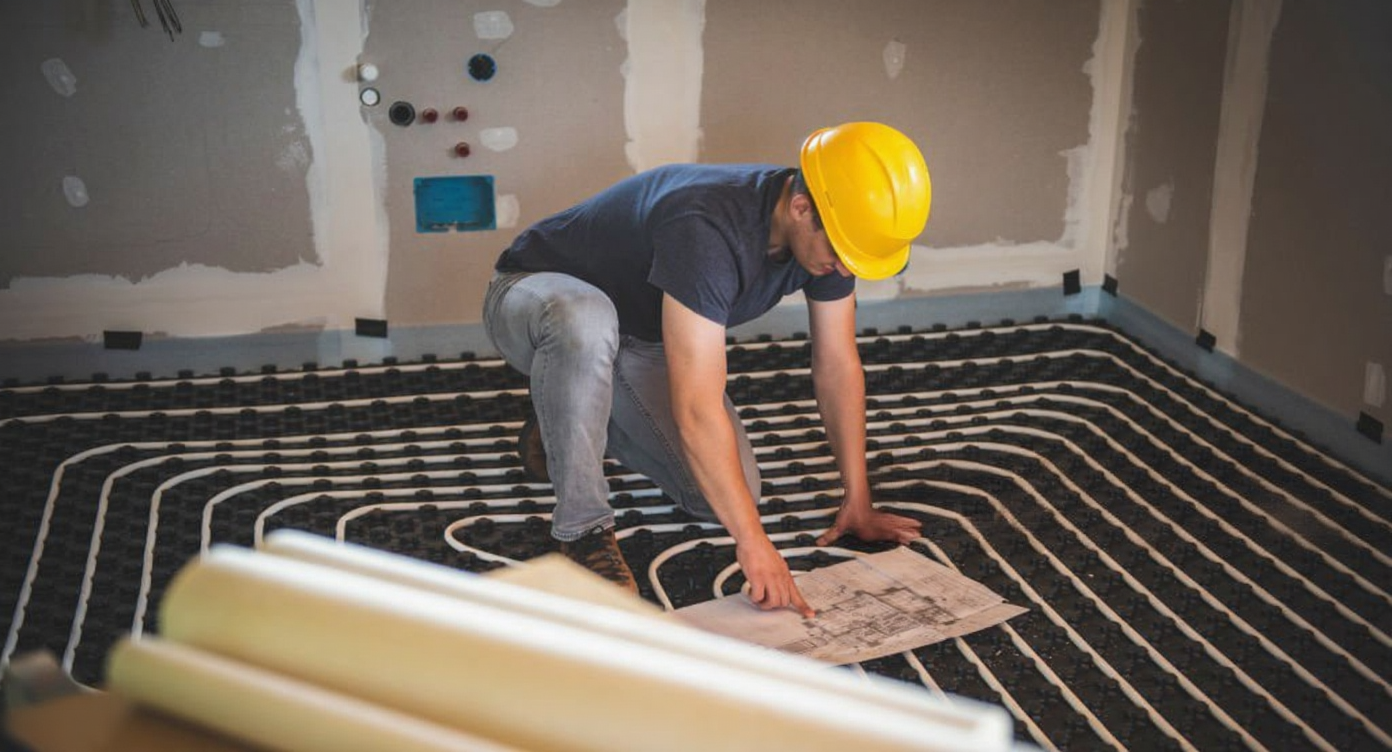

- Installation of the stud plates: laying and connecting via click systems.
- Installation of pipes: install pipes in the studded structure and connect them to the distributor.
- Pressure test: checking the system for possible leaks.
- Installing the screed: pouring the cast floor over the piping system.
- Connection to the heating system: connection to the boiler or heat pump.
We carry out all measurements carefully, take your needs into account and offer the most efficient and cost-effective solution. Take va
